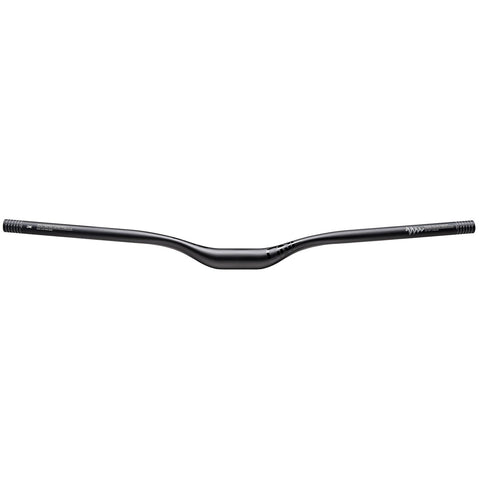

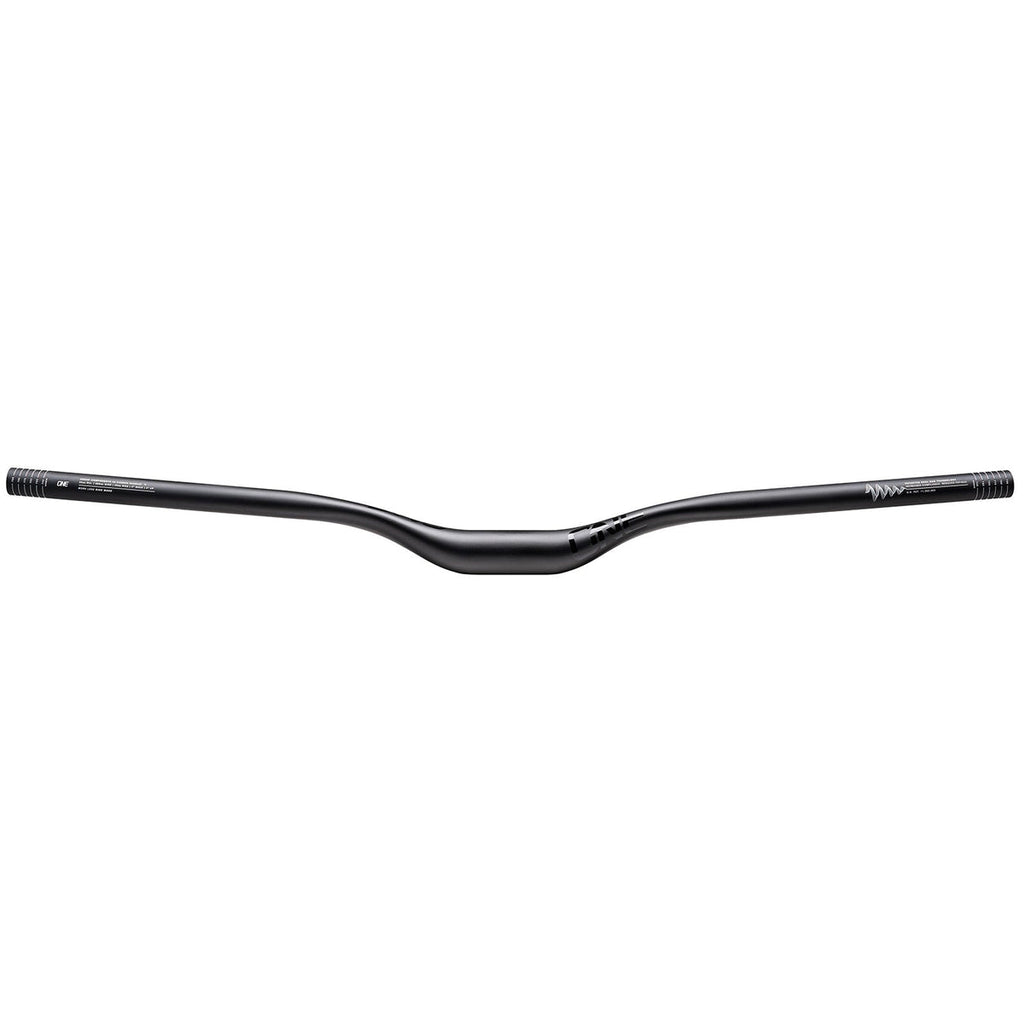

OneUp Carbon Handlebar

  • Sale
  • $ 149.50


  • ONEUP CARBON BARS. Strong, lightweight & vertically compliant.

    The goal for the new OneUp Carbon Handlebars was to make the best feeling bar possible, something which would let us ride harder for longer.

    The solution is our patent pending oval shape which combines the best ride characteristics of 31.8mm and 35mm bar standards into one package. This is the most comfortable bar we’ve ever ridden, period. It's strong, lightweight, minimizes arm pump and vibration and maximize steering response. 35 done right.

    "The OneUp bar gives me all of the confidence inspiring attributes of a 35mm bar with a bit of forgiveness engineered in for those big descents. I've been so impressed after putting it through the paces for the last year."  Thomas Vanderham
    Almost every other carbon bar on the market copies the simple tapered profile of an Aluminum bar. With carbon you can take advantage of more complex shapes to get a better performing product, so that's what we did. If you actually care about bar compliance, then you don't make a regular 35mm diameter bar. Sure you can try to "optimize" the flex slightly with layup, but geometry is king and you're fighting a losing battle.

    The OneUp bar profile minimizes the length of the 35 diameter clamping area as this is the stiffest portion of any 35 diameter bar. The 35mm clamp diameter quickly changes to a flattened, oval shape in the transition zone and then to a standard 22.2mm clamp diameter for the control zone.



    We bench marked the OneUp bar against the most popular carbon bars on the market as well as foam filled aluminum bars. The results were, on average, a 21% increase in vertical compliance (comfort) coupled with a 28% increase in steering stiffness (responsiveness). These are more than just marginal gains.

    Until now the 35mm diameter standard has had a bad reputation and rightly so. This is 35 Dia. done right.

    SPECS

    Geometry: 800mm Wide / 35mm Dia. /  Sweep 8° Back 5° Up
    Weight: 20mm Rise (220g) 35mm Rise (225g)
    Max Stem Clamp Width: 65mm
    Max Stem Clamp Torque: 6Nm
    Max Lever Clamp Torque: 5Nm
    Minimum Trim width: 740mm


    Compatibility

    Grips with only an OUTER clamp are not compatible with our bar.
