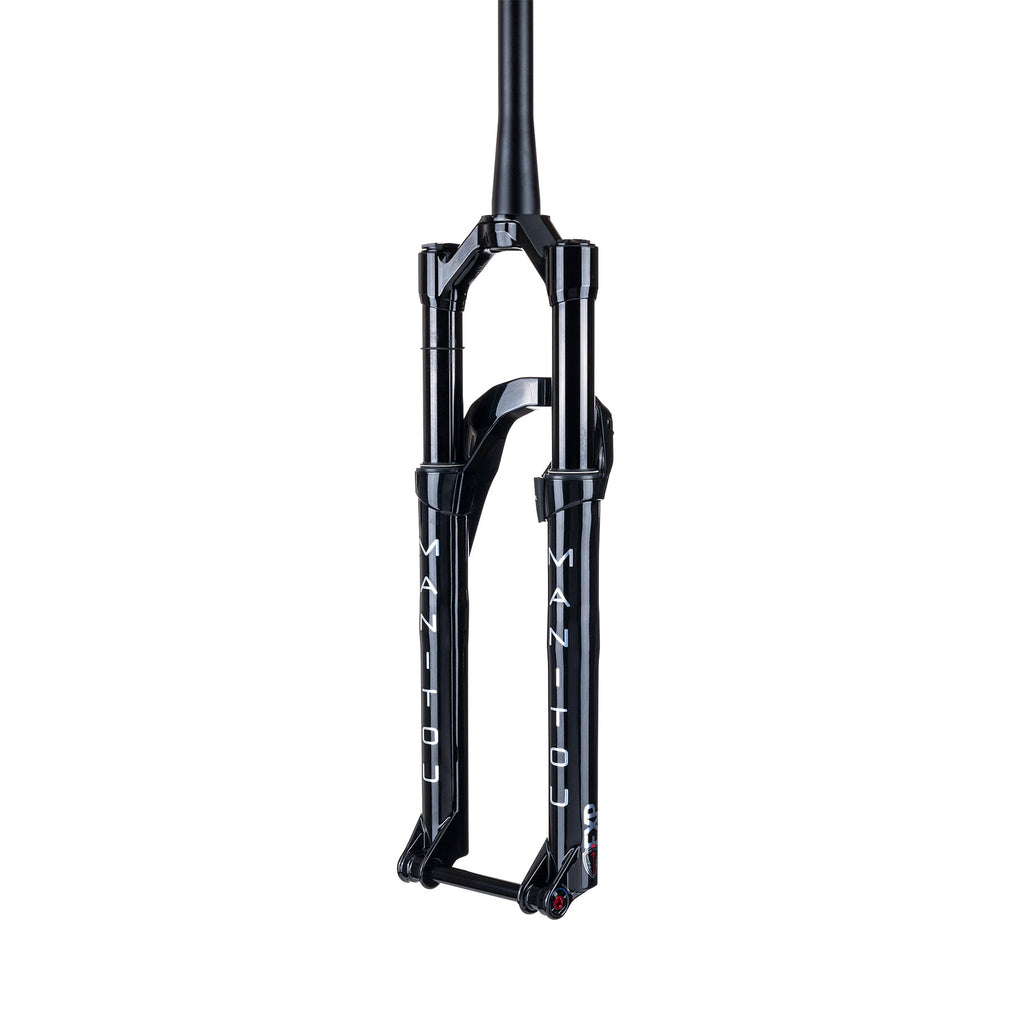

Manitou Mattoc Expert forks at Dirt Merchant Bicycles!
27.5" forks are available in 44mm and 37mm offset.
29" forks are available in 44mm offset only.
All forks can be set between 110mm and 150mm travel with included travel spacers. If needed, travel will be changed before shipping.
•Wheel Size: 27.5", 29"
•Weight: 1740g-1760g
•Offset: 37/44OS (27.5"), 44OS (29'')
•Ride Height: 27.5:
-110mm = 502 a2c
-120mm = 512 a2c
-130mm = 522 a2c
-140mm = 532 a2c
-150mm = 542 a2c
29:
-110mm = 522 a2c
-120mm = 532 a2c
-130mm = 542 a2c
-140mm = 552 a2c
-150mm= 562 a2c
•Spring: Expert Air w/ IVA
•Compression Damping: VTT-6
•Rebound Damping: Open Cartridge adjustable TPC
•Adjustments: Air, Air Volume, Rebound, 3-position Compression (Open, Trail, Lock) With Open Mode Low Speed Compression Adjustment
•Steerer: 1.5" Tapered
•Crown: Forged Aluminum, Hollow Bore
•Leg Diameter: 34mm
•Leg Material: 7000 Series Butted Wall Aluminum
•Brake: Post Mount 160mm
•Axle: 15mm x 110mm Hexlock
•Max Tire Size: 67mm
•Options: Fender Kit, TSR
•E-Bike Compatible: Yes
