*Coil spring sold separately - contact us for spring options
*Fox does not offer all of the shock configurations that we have made available. The DHX uses easily accessible and stack-able 2.5mm stroke spacers that can be reconfigured to adjust shock stroke. For example, a 62.5mm stroke shock will have one 2.5mm stroke spacer, a 65mm stroke will zero stroke spacers. If needed, we will reconfigure the shock's stroke before shipping. Doing so DOES NOT affect your Fox warranty.

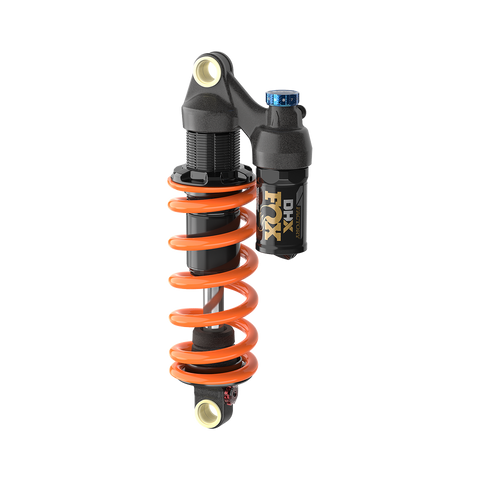

COIL PERFORMANCE FOR THE TRAIL AND BEYOND
Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.
| ADJUSTMENTS |
|---|
| Independent 2 Position Open/Firm Lever |
| Low Speed Rebound – 16 Clicks |
| Low Speed Compression – 11 Clicks |
| Coil spring preload - (new detents on spring collar) |
| SPECS & FAMILY FEATURES |
|---|
| ALL-NEW chassis and damper |
| High-flow main piston |
| Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster |
| Independent firm mode circuit – 2 position adjuster |
| Optimized reservoir lengths per shock size |
| Hydraulic top out feature |
| Reduced damper noise |
| MCU bottom out bumper |
| Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access) |
| Spring preload collar with detents and max / min number of clicks and direction arrow |
| Full diameter spring retainer with wire ring (like DHX2) |
| Spring scuff guard on body (like DHX2) |
| 960-01-016 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 210, 50, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-018 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 210, 52.5, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-020 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 210, 55, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-022 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 230, 57.5, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-024 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 230, 60, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-026 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 230, 62.5, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-028 | 2025, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 230, 65, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-030 | 2025, DHX, F-S, Cr, 2pos-Adj, Trunnion, FOX, AM, 185, 52.5, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-032 | 2025, DHX, F-S, Cr, 2pos-Adj, Trunnion, FOX, AM, 185, 55, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-034 | 2025, DHX, F-S, Cr, 2pos-Adj, Trunnion, FOX, AM, 205, 60, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
| 960-01-036 | 2025, DHX, F-S, Cr, 2pos-Adj, Trunnion, FOX, AM, 205, 62.5, CS50, RL60, LMM, Rezi B60, Kashima/Grey Logo, AM |
