•New air Spring - improved bump compliance and travel usage for a wider range of riders and conditions.
•4 way adjustable damper - provides improved support with less rider feedback. Allows for maximum adjustability and fine tuning of both compression and rebound.
•Air backed bladder - Lowest break away force with maximum consistency on during demanding riding conditions.
•Updated chassis - crown machining reduces weight, casting updates with new bushing bore machining process, drop out machining (MBA red ring) and arch ribbing improves casting stiffness to improve bushing alignment to reduce binding and create a smoother fork throughout the travel.
•Updated casting volume and bottom out system - allow full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring.

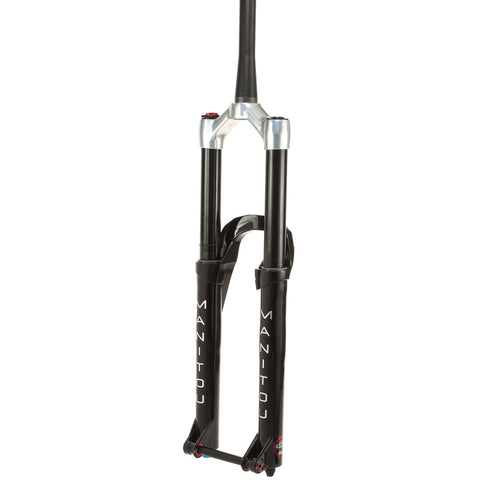

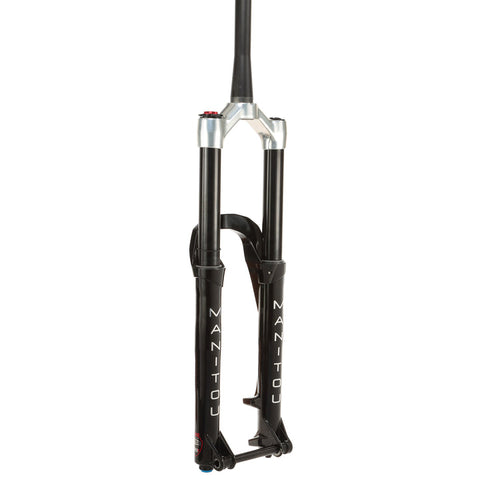

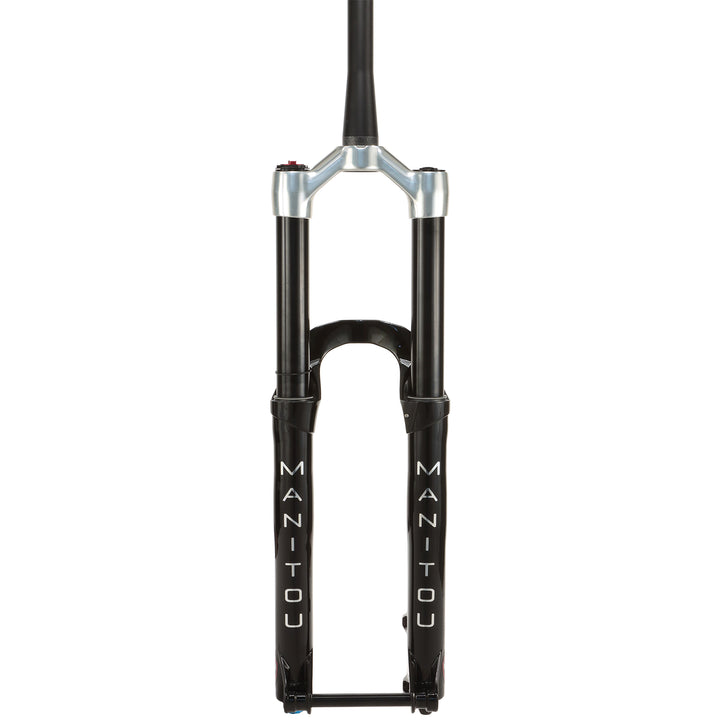

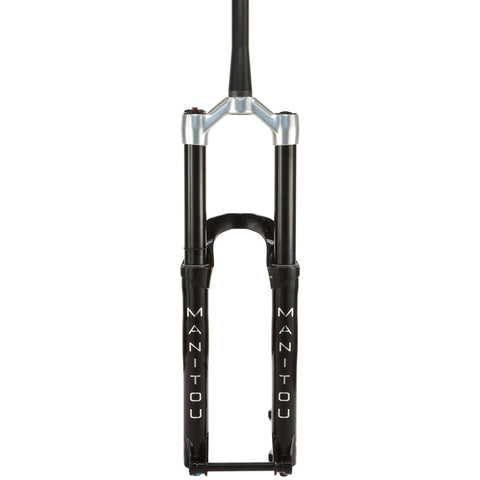

Manitou Mezzer G2 forks at Dirt Merchant Bicycles! Run something other than a Zeb or 38, the new Mezzer G2 is up to the task!
NON LT forks can be set between 140mm and 170mm travel with included travel spacers. Manitou does not offer all travel options from the factory and/or some travel options might be out of stock, if needed, we will adjust travel before shipping your way.
The most technologically advanced fork we have ever made. Lightest weight in the category, largest travel range (140-170), easiest travel adjustment with all components included. Dorado Air Active Spring Piston with IRT is the highest tech air spring system with the most adjustability. Active Spring Piston is a small coil spring that the Dorado Air piston rides on, it gives the fork the lowest initial break away force and smoothest quickest response to direction changes of the fork. The IRT allows for the highest level of air spring adjustability, giving unmatched mid stroke support. MC² PRO-X Damper with Air Backed Bladder is the lightest weight solution with 4 way external adjustability to fine tune the damping characteristics of the fork across a wide range of riders and conditions.
Key Features
Specifications
-
WHEEL SIZE 29" WEIGHT 2030g OFFSET 44mm TRAVEL 140-170mm AXLE TO CROWN 140mm = 551mm, add 10mm of height per 10mm of travel SPRING Dorado Air Active Spring Piston w/ IRT COMPRESSION DAMPING MC² PRO-X with HBO Sealed Cartridge REBOUND DAMPING Sealed Cartridge TPC² ADJUSTMENTS Air, IRT Pressure, Rebound, HSC, LSC, HSR, LSR, Air Backed Bladder STEERER 1.5" Tapered CROWN Forged Aluminum, Deep Hollow Bore w/ external machining polished silver LEG DIAMETER 37mm LEG MATERIAL 7000- Series Butted Wall Aluminum BRAKE Post Mount 180mm (223mm Max) AXLE 15mm x 110mm Hexlock SL2 MAX TIRE SIZE 69mm w/ Fender INCLUDED TSR, Fender Kit, Travel Spacers ASTM RATING 5 GVWR 136kg ASTM 5 / 150kg ASTM 4
