•New straight wall legs for e-optimized chassis - Increased chassis stiffness allows for higher GVWR ebike usage, ability for 190mm of travel.
•ABS+ cartridge is a simple single knob low speed compression and rebound adjustment to satisfy a large range of riders.

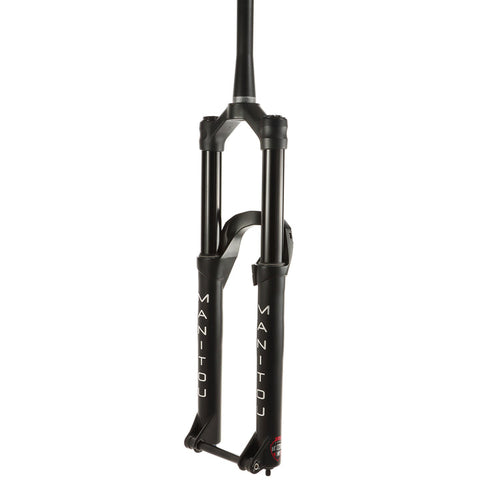

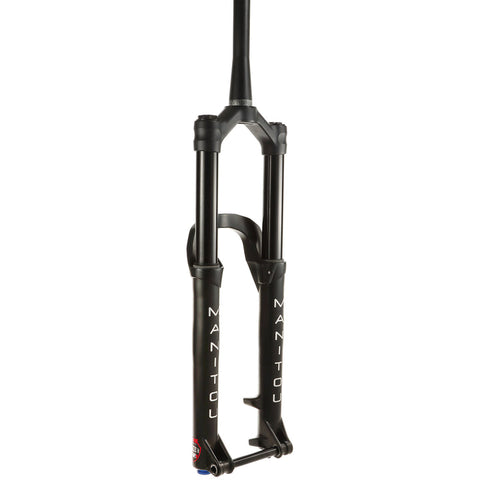

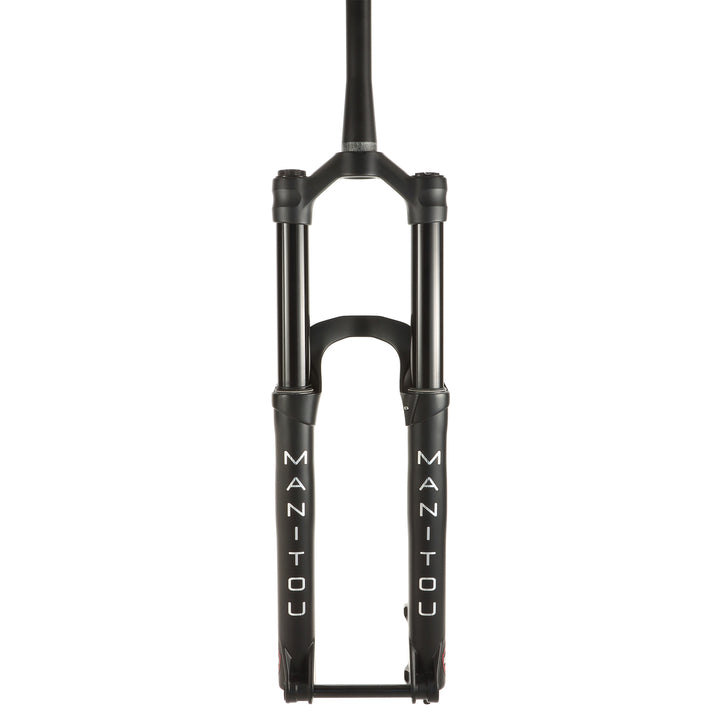

Manitou Mezzer G2 forks at Dirt Merchant Bicycles! Run something other than a Zeb or 38, the new Mezzer G2 is up to the task!
Comp LT forks can be set between 140mm and 190mm travel with included travel spacers. Manitou does not offer all travel options from the factory and/or some travel options might be out of stock, if needed, we will adjust travel before shipping your way.
Comp / ebike optimized chassis allows for travel up to 190mm. This chassis has increased ASTM rating with thicker legs places emphasis on chassis stiffness over weight. New price point for Mezzer. Expert Air system is shared with Expert fork, ABS+ damper and new comp rebound system provide unmatched performance at this price point.
Key Features
Specifications
| WHEEL SIZE | 29" |
| WEIGHT | 2330g |
| OFFSET | 44mm |
| TRAVEL | 140-190mm |
| AXLE TO CROWN | 140mm = 551mm, add 10mm of height per 10mm of travel |
| SPRING | Expert Air w/ IVA |
| COMPRESSION DAMPING | ABS+ |
| REBOUND DAMPING | Cartridge steel adjustable TPC |
| ADJUSTMENTS | Air, Air Volume, Rebound, Compression |
| STEERER | 1.5" Tapered |
| CROWN | Forged Aluminum, Hollow Bore Matte Black |
| LEG DIAMETER | 37mm |
| LEG MATERIAL | LT Series straight Wall Aluminum |
| BRAKE | Post Mount 180mm (223mm Max) |
| AXLE | 15mm x 110mm Hexlock SL |
| MAX TIRE SIZE | 69mm w/ Fender |
| INCLUDED | TSR, Fender Kit, Travel Spacers |
| ASTM RATING | 5 |
| GVWR | 136kg ASTM 5 / 150kg ASTM 4 |
