•Updated chassis - crown machining reduces weight, casting updates with new bushing bore machining process, drop out machining and arch ribbing improves casting stiffness to improve bushing alignment to reduce binding and create a smoother fork throughout the travel.
•Updated rebound tune - improved traction and reduces rider feedback.
•Updated casting volume and bottom out system - allow full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring.
•Updated air volumes for more linear spring curve and improved small bump compliance.

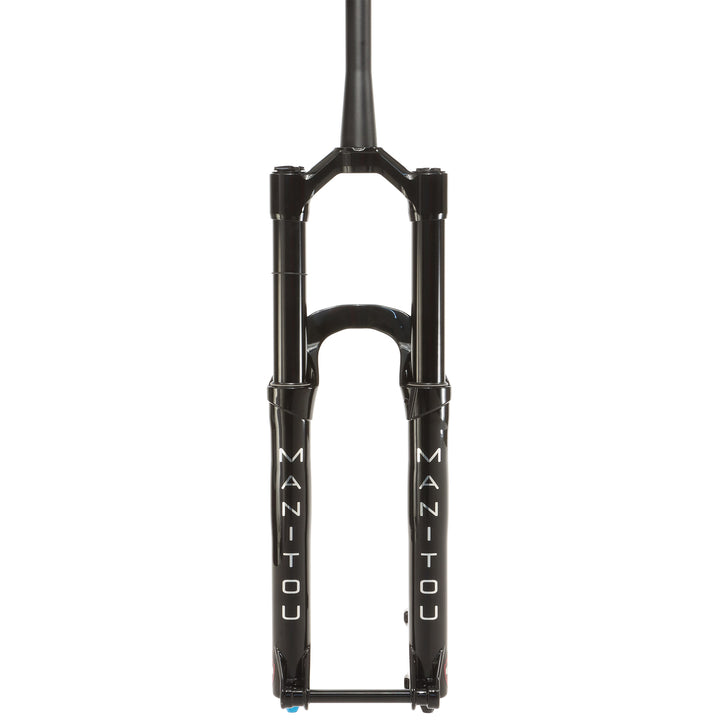

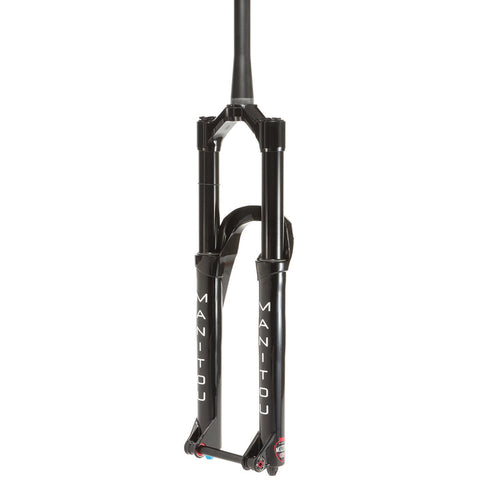

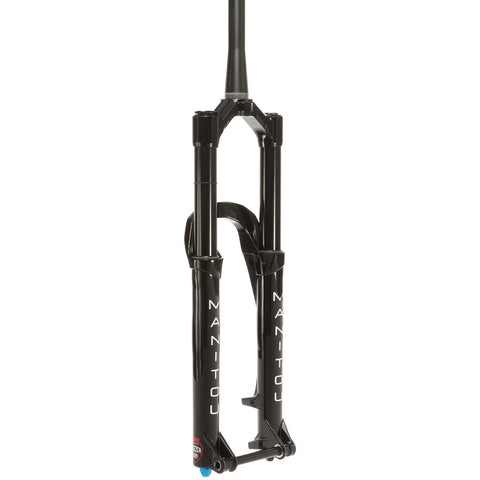

Manitou Mezzer G2 forks at Dirt Merchant Bicycles! Run something other than a Zeb or 38, the new Mezzer G2 is up to the task!
NON LT forks can be set between 140mm and 170mm travel with included travel spacers. Manitou does not offer all travel options from the factory and/or some travel options might be out of stock, if needed, we will adjust travel before shipping your way.
Lightweight chassis shared with pro. VTT 6 Damper adjust high and low speed compression characteristics with a single knob giving more damping support without harshness.
Key Features
Specifications
| WHEEL SIZE | 29" |
| WEIGHT | 2050g |
| OFFSET | 44mm |
| TRAVEL | 140-170mm |
| AXLE TO CROWN | 140mm = 551mm, add 10mm of height per 10mm of travel |
| SPRING | Expert Air w/ IVA |
| COMPRESSION DAMPING | VTT-6 Position |
| REBOUND DAMPING | Half Cartridge adjustable TPC |
| ADJUSTMENTS | Air, Air Volume, Rebound, 6-position Compression |
| STEERER | 1.5" Tapered |
| CROWN | Forged Aluminum, Deep Hollow Bore w/ external machining Gloss Black |
| LEG DIAMETER | 37mm |
| LEG MATERIAL | 7000- Series Butted Wall Aluminum |
| BRAKE | Post Mount 180mm (223mm Max) |
| AXLE | 15mm x 110mm Hexlock SL2 |
| MAX TIRE SIZE | 69mm w/ Fender |
| INCLUDED | TSR, Fender Kit, Travel Spacers |
| ASTM RATING | 5 |
| GVWR | 136kg ASTM 5 / 150kg ASTM 4 |
| OPTIONAL ADD ON | IRT |
